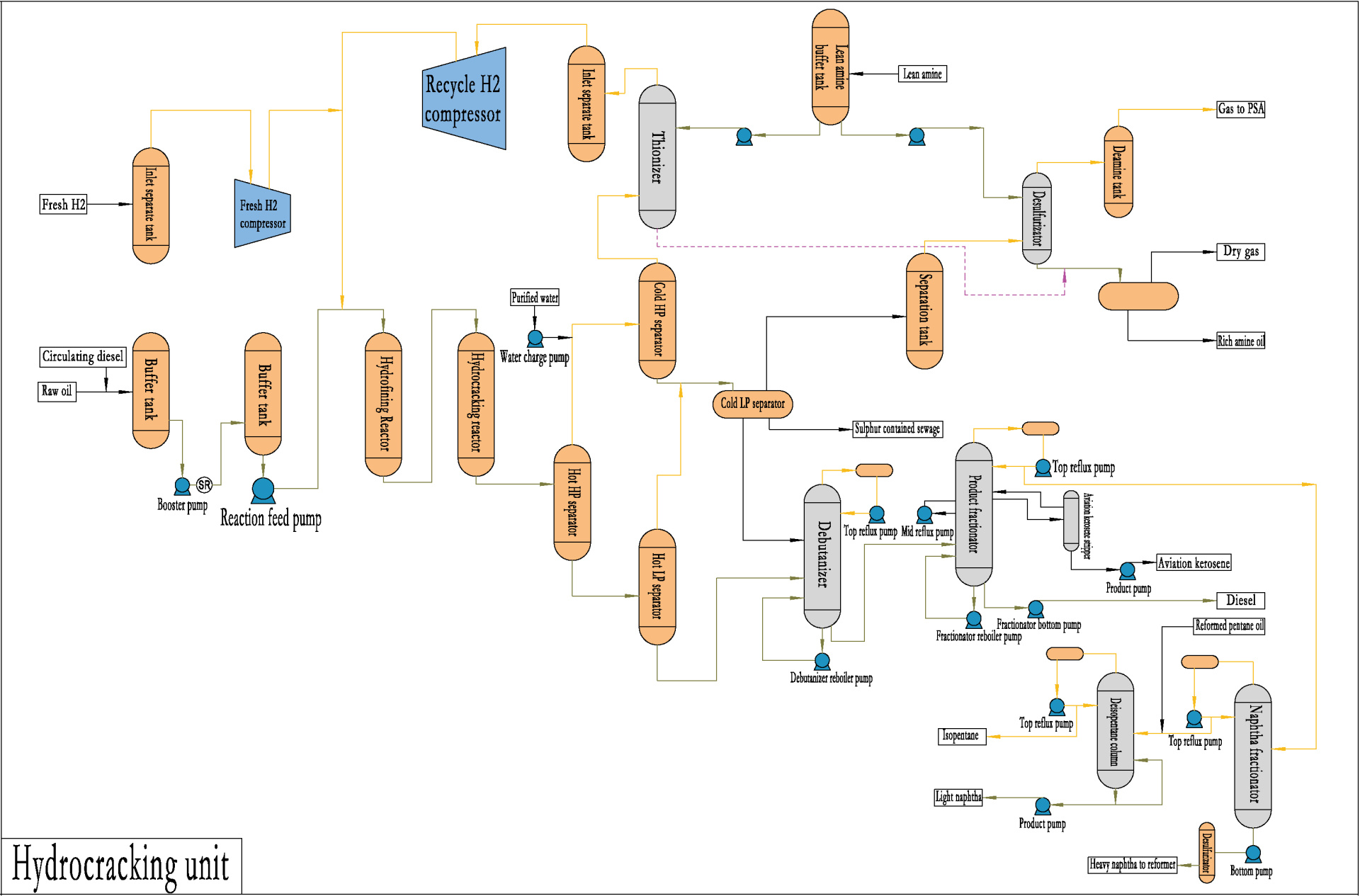

Hydrocracking Unit-SINOSEAL

Hydrogenation unit is the core unit of the refinery, the plant is widely adopted by modern refineries in order to produce clean fuel oil, the plant has high technical complexity with critical equipment.

Delayed Coking Unit

Crude Oil Distillation Unit

Application performances

Kazakhstan PKOP Shymkent Petrochemical

1 MTA catalytic gasoline hydrogenation unit Recycle H2 Compressor Tag No.：CK-1101 Seal model：S747L-128 Medium：H2 etc. Inlet Temp.：45℃ Outlet Temp. ：74.8℃ Inlet Press.：1.52 MPa Outlet Press.：2.47MPa

Sinopec Maoming Petrochemical

2 MTA residual oil hydrogenation unit Hydrogenation feed pump hydraulic turbine Tag No.: TP101 Medium ：Rich amine solution (high content of H2S) Seal model：CM025B/025B Temp. ：63℃ Press.：15.7 MPaG Speed：2980 rpm API plan：PLAN 32+52 OEM:EBARA Equipment model：4x111/4-11stg HSB In operation since 2019

CNPC Dalian West Pacific Petrochemical

Tag No.：P-1102 Seal model：H123-0857 Medium ：Raw oil Operation Temp. ：230 ℃ InletPress.：0.48~0.75 MPaG Speed：5136 rpm Running on the Flowserve HDO pump since 2011

CNPC Yunnan Petrochemical

Wax oil hydrogenation feed pump Tag No.: 0800-P-0101B Equipment model：GSG B2B 150-360/4+4 Seal model：H147-1270/H127-1206 Medium ：hydrocarbon Temp. ：154℃ Inlet Press.：0.375/1.551 MpaG Outlet Press.：18

YanChang Yan'an Chemical

1.2 MTA diesel hydrogenation unit Hydrogen feed pump hydraulic turbine Tag No.: HT-101 Medium ：Reactor products (hot diesel) Seal model：CM15B/19B Temp. ：210～220℃ Press.：7～7.1/2.7 MPaG Speed：2980 rpm API plan：PLAN 02+53B OEM: SULZER Equipment model：GSG 100-300/5 In operation since Jun 2018

Zhejiang Petrochemical

5MTAResidue hydrogenation unitfractionation tower bottom oil pump Tag No.：1105-P-3003A/S Equipment model：BB2 Medium ：fractionation tower bottom oil Temp. 343℃ Speed：1490rpm API plan：32+53B Seal model：CMB052W/B052 In operation since 2019
