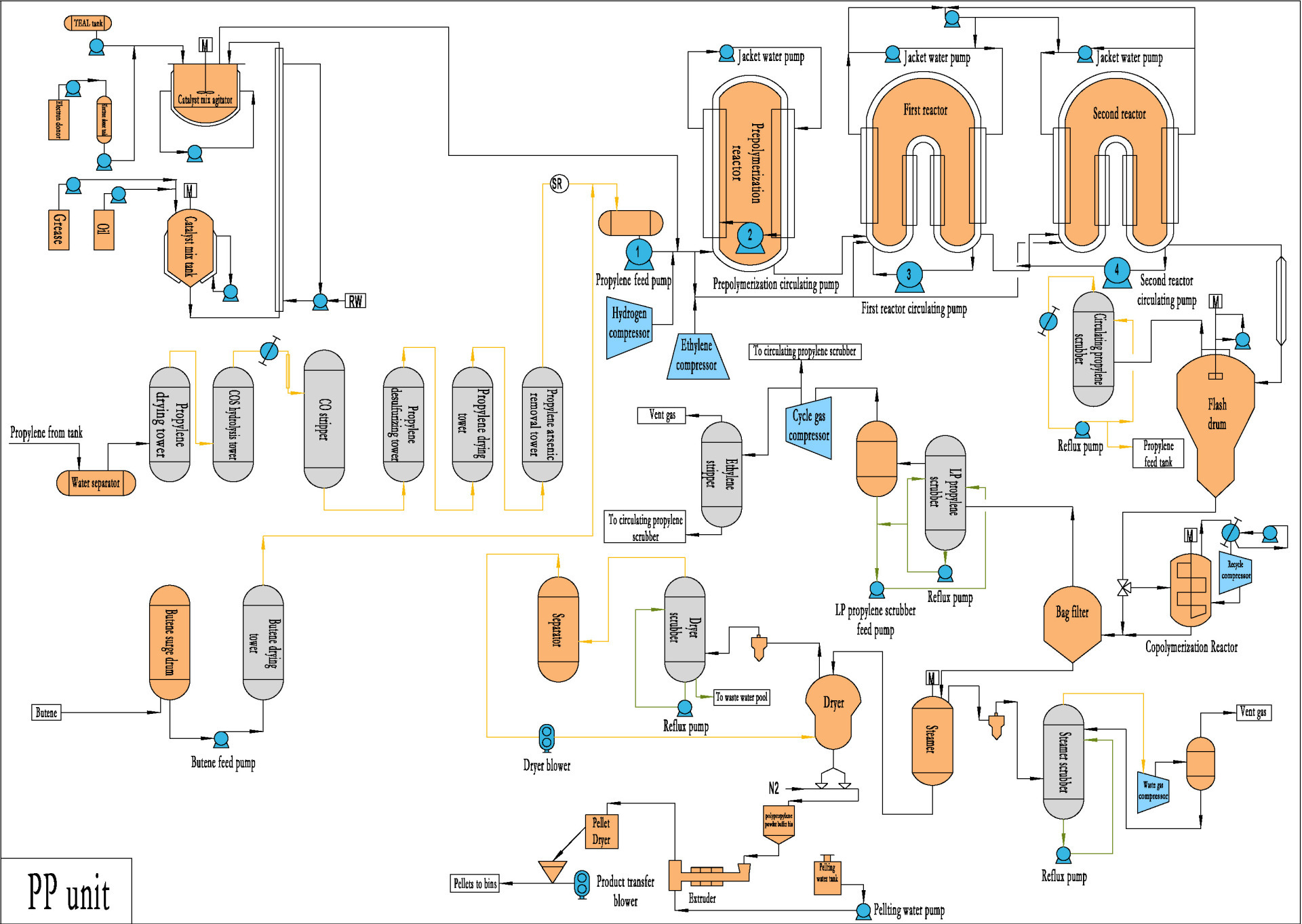

PP Unit-SINOSEAL

Polypropylene is the first choice material for high-end plastic bottles and packaging boxes in the market at present. Its production process is complex and the equipment is difficult.

Olefin Unit

Butadiene Unit

Application performances

Sinopec Zhenhai Petrochemical

PP unit Propylene feed pump Seal model：CM017B/CM017 Medium ：Propylene Temp. ：40℃ Seal Press.: 0.6~0.65MPa Speed：15247RPM Shaft OD ：28.6 mm OEM：Sundyne Running well since operation

Zhongan United Coal Chemical

PP unit Propylene feed pump Seal model：CM19Bn/1B Medium：Propylene Temp. ：45℃ Inlet Press.：1.9MPa Outlet Press.：4.95MPa Speed：2950RPM OEM：Flowserve Running well since operation

Sinopec Zhenhai Petrochemical

PPunitPropylene circulating pump Seal model：CM02BD Medium ：PP Temp.：20~90℃ Inlet Press.：4.4MPa Outlet Press.：4.428MPa Speed：3000RPM OEM：Lawrence Running well since operation

CNPC Daqing Petrochemical

PP unit circulating gas compressor Tag No.：2-C250 Medium：Propylene + polypropylene particles Temp.：80℃ Speed：2966rpm Inlet Press.：3.0MPaG Outlet Press.：3.34MPaG OEM：KOBELCO Equipment model：DH7JM Seal model：ST-150-

CNPC Daqing Petrochemical

PP unit circulating gas compressor Tag No.：C401 Medium：Propylene + polypropylene particles Temp.：73.5℃/77.5℃ Speed：2960rpm Inlet Press.：1.15MPaG Outlet Press.：1.32MPaG OEM：ATLAS Equipment model：T078T1D1 Seal model：S747L-94-

Sinopec Jingmen Petrochemical

100KTA polypropylene axial flow pump Tag No.：P201 Seal model：CM025B/ CM029B/029B Medium ：Polypropylene slurry Temp. ：70℃ Inlet Press.：3.3MPa Outlet Press.：3.512MPa Speed：1485rpm API plan：32+53C+52 OEM：Lawrence Equipment model：24"(600mm)9500 In operation since 2000

Yanchang Yan'an Energy and Chemical

PP unit Stripping tower bottom pump Tag No.：0800-G-651 Medium ：Propylene Temp. ：43.9℃ Inlet Press.：1.738MPa Outlet Press.：3.39MPa Speed：2980r/min API Plan：11+52 Seal model：CM19Bn/11B OEM：Ebara Equipment model：150X100(A)DCD6M Running well since operation in 2018

Sinopec Maoming Petrochemical

300KTA PP unit Axial flow circulating pump Tag No.：P-30201/30202 Medium ：Propylene Temp. ：70℃ Inlet Press.：3.4MPa Outlet Press.：3.57MPa Speed：1488r/min API Plan：53C+52 Seal model：CM01B/01B OEM：Lawrence Equipment model：24" Running well since operation in 2018

Pucheng Clean Energy Chemical

400KTA PP unit Axial flow circulating pump Tag No.：880P-201 Medium ：PP slurry Temp. ：70～90℃ Inlet Press.：3.4MPa Outlet Press.：4.6/4.8MPa Speed：1480r/min API Plan：32+53C+52 Seal model：CM037B/CM03B OEM：Flowserve Equipment model：12HED 31DS Running well since operation in Nov 2015
