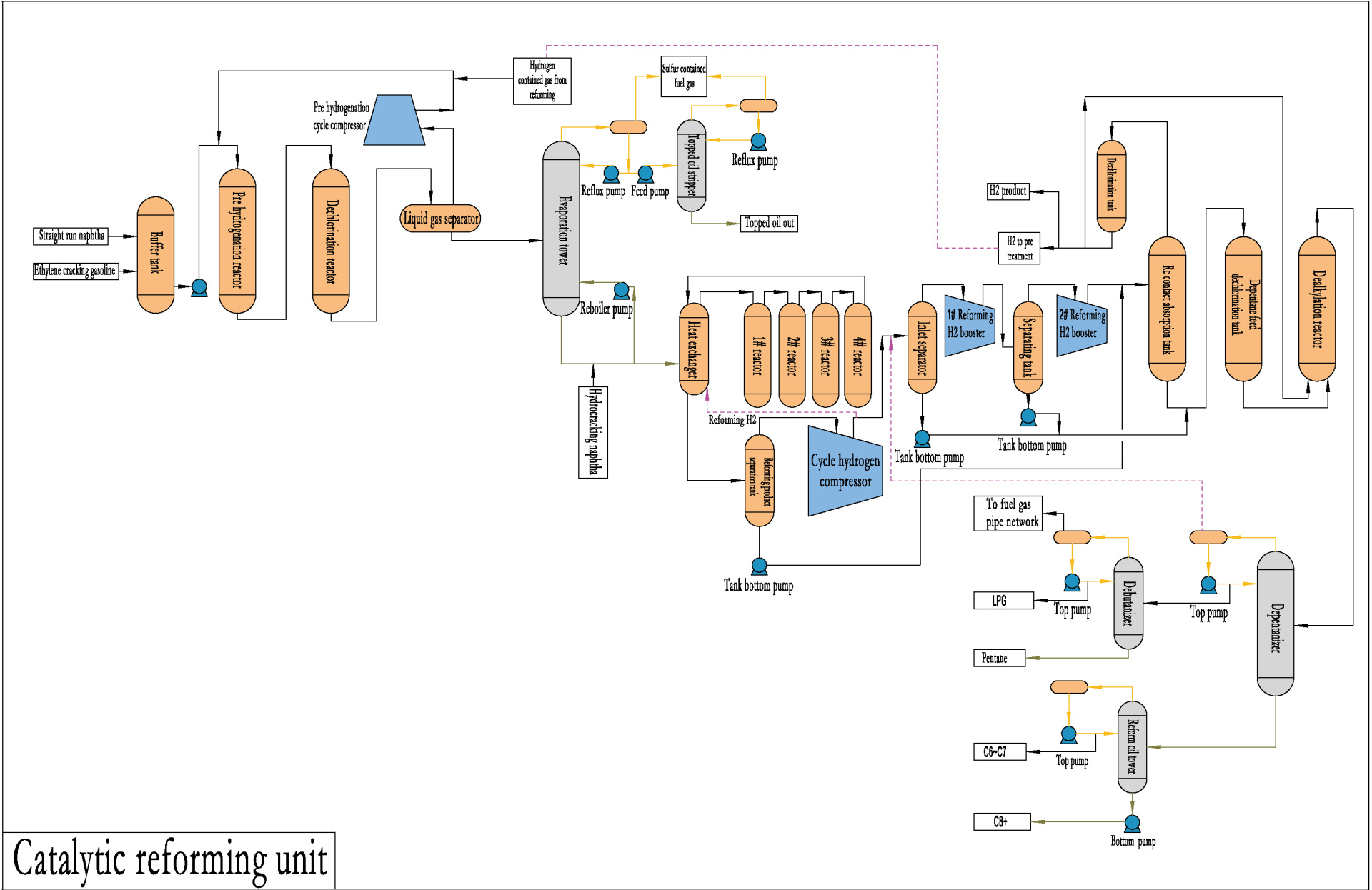

Catalytic Reforming Unit-SINOSEAL

CCR is one kind of secondary processing technology of petroleum. The main raw materials for processing are straight run naphtha and hydrotreated naphtha with low octane. By using catalyst, the molecules can be rearranged and isomerized at high temperature, so as to increase the production of aromatics and octane of gasoline.

None

Alkylation Unit

Application performances

Sinopec Shanghai Petrochemical

1MTA reforming unit Hydrogen booster Equipment model：BCL707（LP）+ BCL608（MP）+ BCL609（HP） Seal model：S747L-190/145/145 Medium ：Recycle H2 Inlet/Outlet Temp. ：46/120.1℃（LP）+43/126.1℃（MP）+43/119.8℃（HP） Inlet /Outlet Press.：0.34/0.72Mpa（LP）+0.65/1.45Mpa（MP）+1.4/2.8Mpa（HP） Speed：7928rpm（LP）+8753 rpm（MP&HP） Shaft OD：190mm（LP）+144mm（MP&HP） OEM：SBW

Kazakhstan Atyrau Refinery

1 MTA continuous reforming-aromatic hydrocarbon extraction unitRecycle H2 compressor Medium：H2 etc. Shaft OD：190mm Speed：7145rpm Inlet Press.:0.312 MPa Outlet Press.:0.682 MPa Inlet Temp.：38℃ Outlet Temp. :111℃ OEM：SBW Equipment model：BCL708 Seal model：S747L-190 In operation since 2016

Sinopec Shanghai Petrochemical

1 MTA continuous reforming unit hot water circulation pump Tag No.:P-207A/B Medium ：hot water Seal model：CM292B Temp. ：252℃ Inlet Press.：4.7Mpa Outlet Press.: 5MPa Speed：1485rpm API plan：23 OEM: Flowserve Equipment model：10HNNH-22 In operation since 2012

Contact

Email: export@sns-china.com

International sales: +86-028-85373902

Address: No. 8, 4th Wuke West Road, Chengdu City, Sichuan Province，China

Sinoseal Holding Co., Ltd. is a Chinese listed company and a leader in China’s Fluid Sealing Industry. Sinoseal has transformed its 40 over years of research and development experience into a professional company specialized in the production and a provider of overall sealing solutions for its customers. With our strong technical strength and advance technology and equipment used in manufacturing , Sinoseal’s products and services enjoy a good reputation across the industries it serves in China.

Customized products, please contact our sales department for details.
