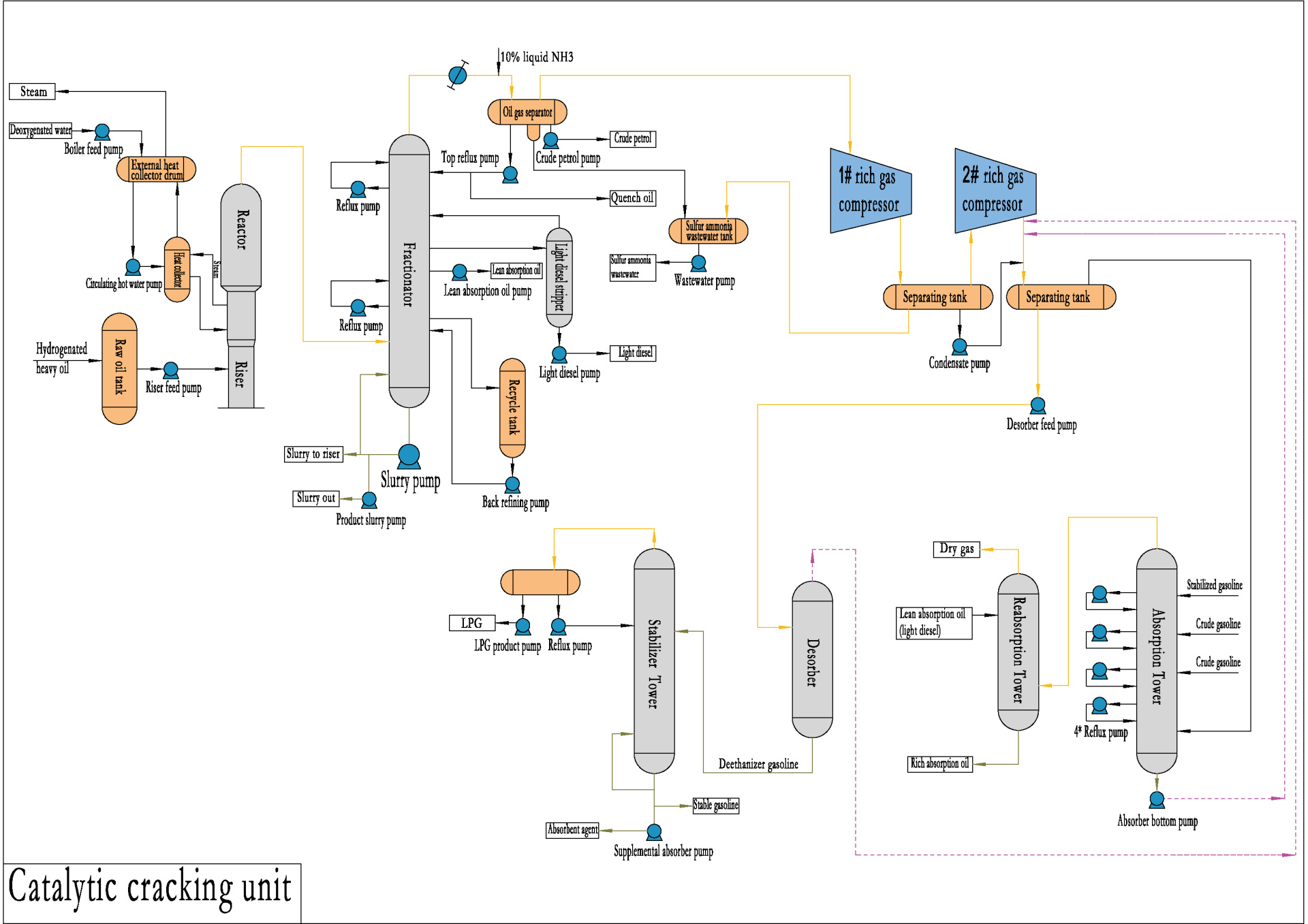

Catalytic Cracking Unit-SINOSEAL

CCUand deep CCU is also one of the main treatment of heavy oil, which is the process of cracking heavy oil under the action of heat and catalyst, and changing into cracking gas, gasoline and diesel.

Alkylation Unit

Delayed Coking Unit

Application performances

Sinopec Zhenhai Petrochemical

3MTA Catalytic cracking unitSlurry pump Tag No.:P1209 Seal model：CMB052D Medium ：Circulating slurry oil（Solid:10000ppm，H2S: 1%（wt）） Temp. ：345℃ Inlet Press.：0.27MPa， Outlet Press.：1.14/1.09MPa Speed：1485 r/min； API plan：32+53A OEM：Ebara In operation since 2017

Sinopec Yangzi Petrochemical

Catalytic cracking unit Slurry pump Tag No.：P208AB Seal model：CMB021W/B021 Operation Temp. ：350℃; Operation Press.：0.15MpaG Speed：1490rpm; API plan:32+53B OEM：Sulzer Suzhou Equipment model：MSD 4x6x10C In operation since 2018

Yanchang Coal Yulin Energy and Chemica

DDC unit slurry pump Tag No.: P-4207A/B/C Seal model：CMB054/027B Medium ：Circulating slurry oil Operation Temp. ：315.5—343.3℃ Operation Press.：0.179Mpa（Inlet）~2.28MPa（Outlet） Speed：1500rpm API plan

Sinopec Jingmen Petrochemical

Catalytic cracking unit Slurry pump Tag No.：3181-P-208A/B Seal model：CMB052D Medium ：Slurry oil Operation Temp. ：330/350℃ Operation Press.：0.33MPa(Inlet)~1.29MPa(Outlet) Speed：1490rpm API plan：32+53B OEM：Ebara

Contact

Email: export@sns-china.com

International sales: +86-028-85373902

Address: No. 8, 4th Wuke West Road, Chengdu City, Sichuan Province，China

Sinoseal Holding Co., Ltd. is a Chinese listed company and a leader in China’s Fluid Sealing Industry. Sinoseal has transformed its 40 over years of research and development experience into a professional company specialized in the production and a provider of overall sealing solutions for its customers. With our strong technical strength and advance technology and equipment used in manufacturing , Sinoseal’s products and services enjoy a good reputation across the industries it serves in China.

Customized products, please contact our sales department for details.
